SPLINE SHAFT
Customized spline shaft solutions
Empowering OEM Industries with Precision-Crafted Custom Shafts， Your Trusted Partner for Tailored Solutions and Uncompromising Quality
What is spline shaft
Diverse Types of splines cater to unique needs:
⚙️ Parallel key splines feature ridges with a squared profile.
⚙️ Involute splines boast tapered ridges, effectively mitigating stress concentration.
⚙️ Crowned splines present ingeniously modified teeth that taper towards the end face, accommodating angular misalignment.
⚙️ Serrations, with their non-involute tooth form, adopt an included angle design, enabling the incorporation of more teeth onto narrower diameter shafts.
⚙️ Helical splines exhibit teeth that form either a parallel or involute configuration, creating a captivating helix pattern around the shaft. This design grants the flexibility of rotary and linear motion while minimizing stress concentrations, a pivotal attribute for stationary joints grappling with high loads.
In sum, whether your project demands the finesse of parallel key splines or the dynamic capabilities of helical splines, our expertise remains poised to furnish you with solutions that impeccably translate your requirements into reality.

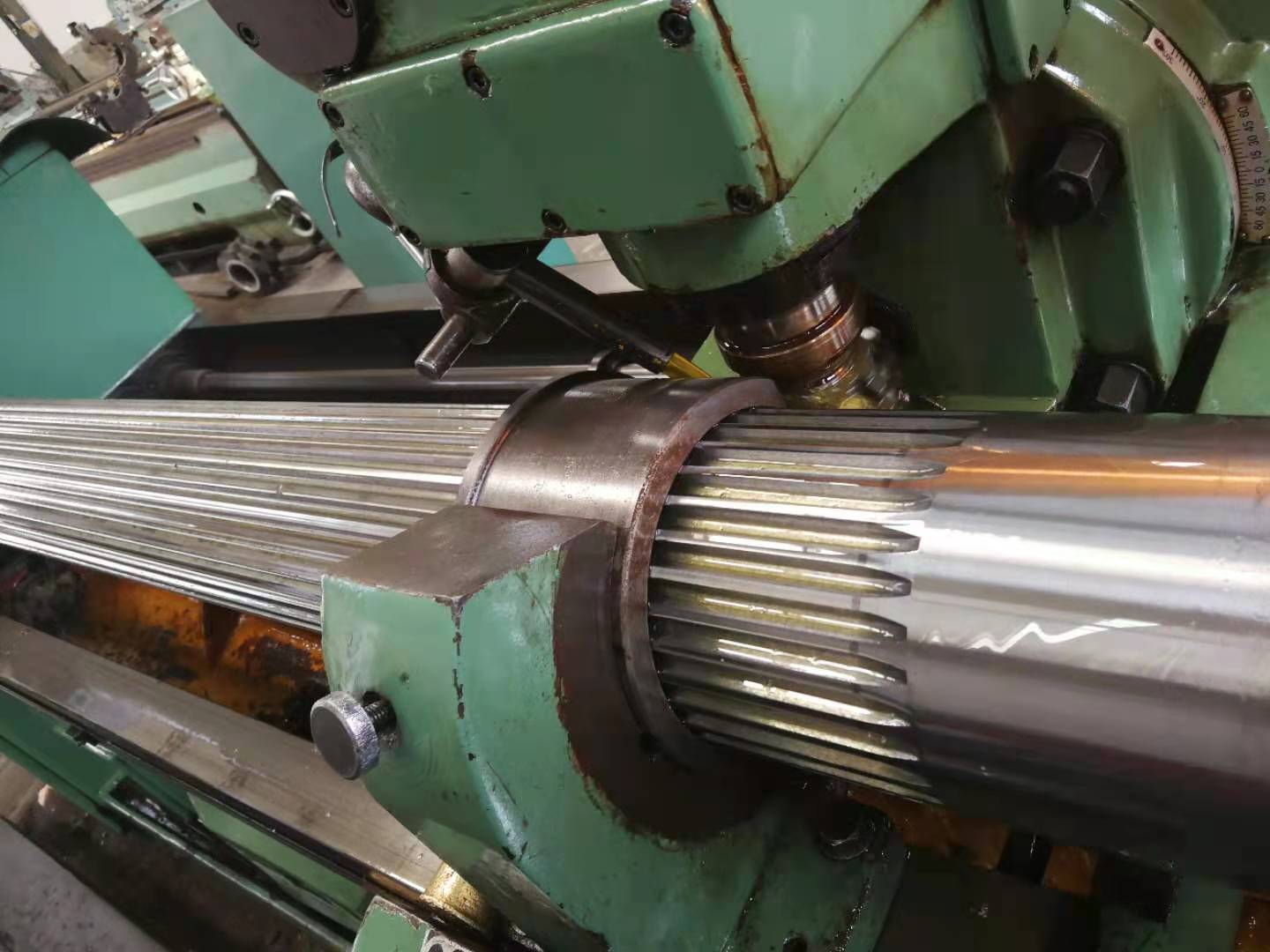

In the realm of external spline gears, various manufacturing methodologies come into play. Techniques such as broaching, shaping, milling, hobbing, rolling, grinding, and even extrusion are employed to shape these gears to perfection. While the array of techniques is broad, the process for internal spline gears largely mirrors these methods, with the exception of hobbing due to space constraints. Leveraging the precision of our CNC cutting machines, Belon stands ready to furnish you with precisely the product you envision.
Our prowess extends to crafting spline shafts of diverse dimensions. Ranging from 15mm to 510mm in diameter and stretching up to 2800mm in length, these shafts cover a comprehensive spectrum of sizes. The modular range spans from 1 to 20, further underscoring our capacity for versatile customization.
Splines, those intricate ridges or teeth found on drive shafts, serve as the vital connection points engaging with corresponding ridges or teeth on a complementary component. This intricate meshing facilitates the seamless transmission of torque between these components, ensuring efficient power transfer within OEM industries.
Belon capability
Spline shaft types
| Data | |
| Modulus Max. | 20 |
| Length Max. | 2800mm |
| Quality | DIN4 |
